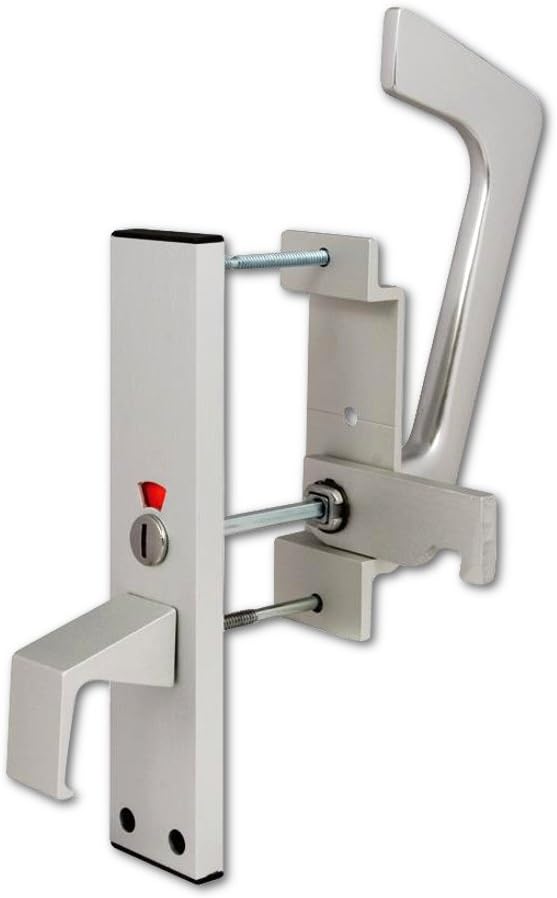

Facility Indicator Bolt In Silver Finish

Left Handed Illustrated

Suitable for cubicle or standard doors. This incorporates a large lever handle for ease of use and its hook bolt makes it suitable for use with hinged or sliding doors matching screws.

Application:

• Suitable for toilet / bathroom doors where ease of operation is desired
• Suitable for hinged and sliding doors
• Surface mounted
• Bolt-through fixing - can be fitted directly to cubicle or flush panel door
• Exterior pull may be fitted at 90, 180, 270 or 360º
• Hand must be stated when ordering

Operation:

• Lever mechanism
• Locking bolt connected directly to lever handle at 90º
• Vertical position of lever handle bolts door, can be seen by occupant
• Lever handle travel limited to 30º by screw through centre of backplate - can be increased to 90º by removing screw

Specification:

• Reference 37651L - Left Handed
• 37651R - Right Handed
• Material Aluminium with black plastic moulded end caps
• Handle Projection 77mm
• Plate Projection 44mm Bolt Length 41mm N.B:
• Hand must be stated when ordering
